Products » PAN Subwoofer » P SW-112 | SP [active]

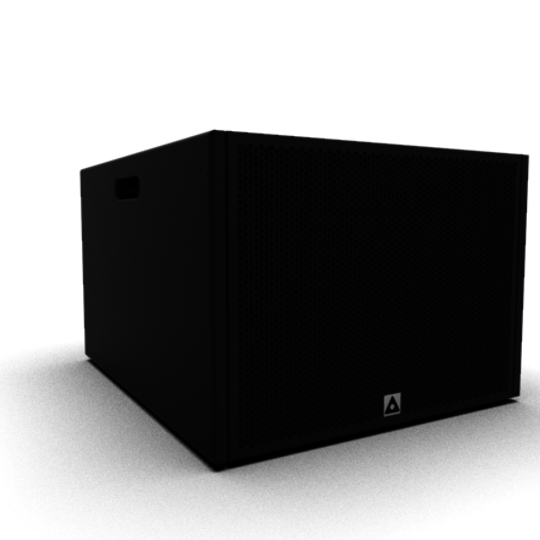

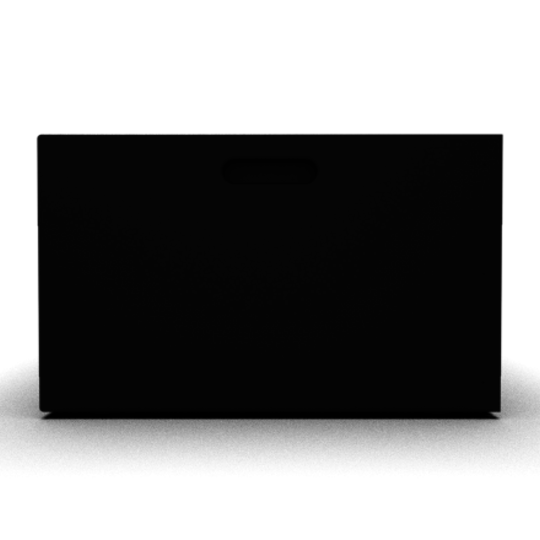

P SW-112 Pan Subwoofer P SW-112

Pan Subwoofer

P SW-112 | SP [active]

Applications

Churches, museums, live sound, sports facilities, parliaments, conference rooms, lecture halls, shopping malls, audio/video presentation rooms, immersive sound, surround applications

read more

The Pan Subwoofer P SW-112 | SP is a powerful subwoofer in a high-quality birch plywood cabinet with textured finish. The P SW-112 | features an appealing design as well as an undistorted, precise and deep bass reproduction. The P SW-112 | SP can be operated individually or in various cardioid arrangements.

Technical data

Configuration: Direct radiating subwoofer
Lower cut-off frequency: 35Hz
Drivers: 1 x 12" HQ
Power: 3500 W (Peak) / 2500 W (Program) / 1100 W (AES)
Dimensions (H x W x D): 368 x 510 x 600 [mm]
