museums, demanding architecture, clubs
churches, mosques, theatres, lobbies
museums,theatres, conference rooms
System definition files for the Pan AMT and Pan Subwoofer series for EASE and EASE Focus
With the new available GLL data, additional speaker models from our portfolio can now be used with EASE and EASE Focus 3. This allows a fast simulation of the direct sound distribution with EASE Focus 3 or a complex 3D modeling with EASE.
For the first time, data is also available for the new P 12-AMT line source based on the Mundorf "Air Motion Transformer" as well as for the Pan subwoofer series. Thanks to the simulation data, projects can now be designed and installed even faster and more efficiently.
Downloads Software Download GLL Pan AMT Download GLL Pan Subwoofer
The VSM / VSM XL VESA speaker mount enables quick and easy mounting of speakers from the Pan Beam, Pan Speaker and Pan AMT series on displays up to 98" in size.
The stand base for P / PB xx (max. two modules), with base plate 450 x 450 [mm] is designed to accommodate Pan Acoustics speaker systems up to a length of 1812 mm of the series Pan Beam, Pan Speaker, Pan AMT. The stand base is in the same design as the speaker. Visually, this forms a common unit and thus results in a successful symbiosis between architecture and sound.

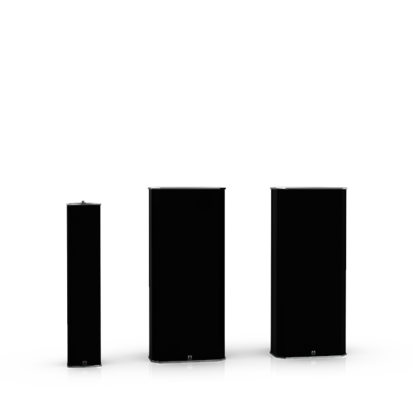

Pan AMT P 04-AMT is a passive full-range line source speaker in D'Appolito design. In an appealing design it is ideally suited for speech and music applications for upscale conference and auditorium applications as well as for surround applications.
The Pan AMT P 12-AMT is a passive full-range line source speaker in an attractive, compact design for speech and music applications. The Pan AMT P 12-AMT is characterized by a powerful bass response as well as high fine detail and exquisite resolution even at the highest frequencies.
Pan AMT P 261-AMT | Event is a passive full-range loudspeaker with bass reflex system in D'Appolito design. The speaker is tuned for optimal performance and perfect sound. It feels at home in live sound but also in surround applications.
The P 261-AMT | Cine is passive full-range loudspeaker that comes with a subwoofer. Due to a perfect symbiosis of woofer driver and bass reflex system combined with an AMT Mundorf tweeter unit, this speaker is perfect for surround and studio applications, but also for applications where a rich low frequency is required and no subwoofer can be placed.
The Pan Beam PB 04-D | PoE++ with Power Core Technology is a compact, active, digitally controllable line source with beam steering technology in an attractive design, developed for high-quality voice and music transmissions over AoIP network connections with PoE++. PoE classes (30 W, 60 W, 90 W) are supported.

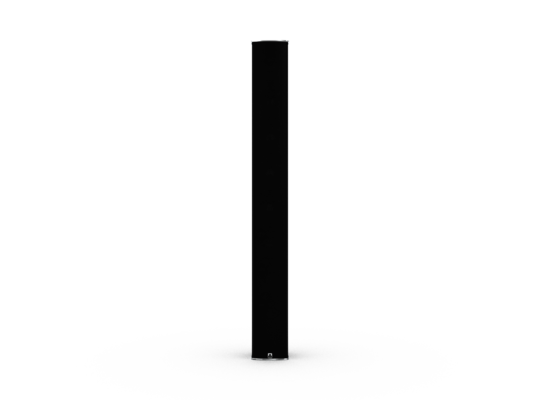

The Pan Beam PB 08-D | PoE++ with Power Core Technology is a compact, active, digitally controllable line source with Beam Steering Technology in an attractive design, developed for high-quality voice and music transmissions over AoIP network connections with PoE++. PoE classes (30 W, 60 W, 90 W) are supported.
Individual lacquering / colouring in the RAL system. Other colour systems such as RAL design, Pantone etc. are possible on request.
Individual cabinet length of the speaker is possible. The enclosures of the Pan Speaker series can be customised to customer dimensions.
Analog audio inputs with balanced signal routing
Digital audio inputs support 2 x AES/EBU (AES3).
Digital audio network DANTE incl. AES67 support. Redundant network structure with Pan Net control.
100V audio inputs with different power taps.
Pilot tone evaluation for integration in SAA/ ENS systems.
Pan Net - Pan Acoustics' proprietary control and monitoring protocol.
General Purpose Output (GPO) Switchable contact e.g. for status request by means of downstream media control.
Priority switching - Automatic switching of the audio inputs, e.g. between program and announcement.
DC input for operation on emergency power supplies.
Weatherproofing of the loudspeakers can be achieved via protection classes IP54 or IP65 (depending on the model).
Accessories such as wall, stand and ceiling mounts, various interfaces, connection cables, weather protection hoods and connection sets are available.
Ball throwing safety
Pan Acoustics' products are defined by natural sound and appealing design.
