Behind the Pan AMT series is the idea of designing loudspeakers that break new ground in high frequency sound reproduction. Anchored in the corporate DNA of Pan Acoustics is the gene of combining proven technologies in a new way.
For the AMT series a cooperation with Mundorf EB GmbH, the German manufacturer of Air Motion Transformers (AMT), was entered. Together with Mundorf a special AMT tweeter unit was developed, which enriches the Pan Acoustics product range due to its natural high frequency reproduction.
The AMT technology was combined with clever crossover design and a ported low frequency driver setup. The result is a product that is unmatched in the sound reinforcement market.
Precise high-frequency reproduction, clearly defined mids and lows are the hallmarks of these speakers.
You need the right sound reinforcement solution for your project or are looking for support in choosing the right products? You don't get anywhere with off-the-shelf loudspeakers and are dependent on a special design? Would you like to learn more about our products and audio technologies?
We are here for you!

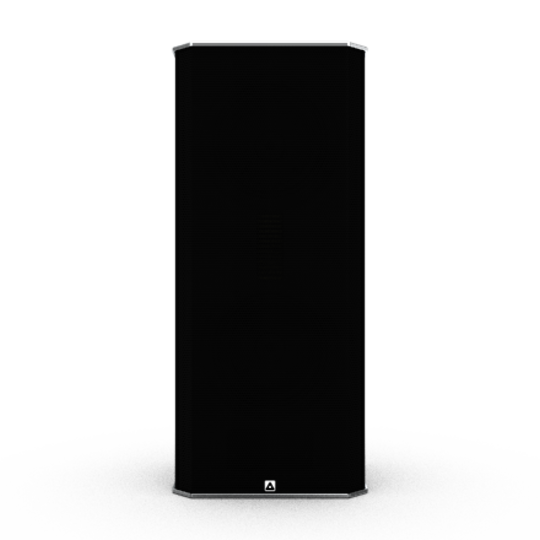

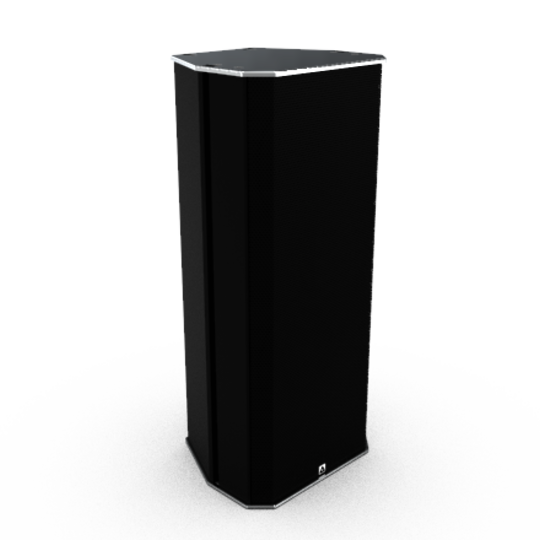

The Pan AMT P 261-AMT | Cine is a passive loudspeaker with bass reflex system (D'Appolito) in an appealing, compact line design for speech and music applications. The Pan AMT P 261-AMT | Cine is characterized by a high level of fine detail and exquisite resolution even at the highest frequencies. The loudspeaker contains two 6.5" HQ woofer drivers and a specially developed AMT tweeter unit from Mundorf. The cabinet is made of aluminium and can be painted in any colour according to the customer's wishes.
|Passive full-range speaker with bass refl ex system (D'Appolito).
|50 Hz - 24 kHz
|2 x 6.5" + 1 x Air Motion Transformer (AMT)
|1000 W (peak)/ 500 W (program)
|Dimensions (H x W x D):
|555 x 244 x 210 [mm]
Individual lacquering / colouring in the RAL system. Other colour systems such as RAL design, Pantone etc. are possible on request.
Individual cabinet length of the speaker is possible. The enclosures of the Pan Speaker series can be customised to customer dimensions.
Analog audio inputs with balanced signal routing
Digital audio input: supports 2 x AES/EBU (AES3) and 1 x anlaog audio (failover function)
Digital audio network DANTE incl. AES67 support. Supports redundant network structure with Pan Net control and 1 x analogue audio (failover function).
100V audio inputs with different power taps.
Pilot tone evaluation for integration in SAA/ ENS systems.
Pan Net - Pan Acoustics' proprietary control and monitoring protocol.
General Purpose Output (GPO) Switchable contact e.g. for status request by means of downstream media control.
Priority switching - Automatic switching of the audio inputs, e.g. between program and announcement.
DC input for operation on emergency power supplies.
Weatherproofing of the loudspeakers can be achieved via protection classes IP54 or IP65 (depending on the model).
Accessories such as wall, stand and ceiling mounts, various interfaces, connection cables, weather protection hoods and connection sets are available.
Ball throwing safety
Pan Acoustics' products are defined by natural sound and appealing design.
With the P 261 AMT loudspeakers in the two variants "Event" and "Cine", the development team of Pan Acoustics has drawn from the full in terms of the quality of the components and the development effort. The following report shows what makes the two loudspeakers tick and how the elaborate construction of the two systems translates into audible characteristics:
How practical: structured cabling is usually available in meeting rooms, since multimedia meetings are no longer conceivable today without the appropriate IT infrastructure. It is precisely this CAT cabling that Pan Acoustics takes advantage of by connecting the speakers directly via RJ45 to compatible PoE amplifiers as well as to any power amplifiers via an available adapter plug.
The loudspeakers with RJ option can thus be installed without the use of any tools.
