PAN ACOUSTICS - THE SOUND SPECIALIST FOR CRYSTAL-CLEAR communicatION
IN ACOUSTICALLY challengING ENVIRONMENTS. Benefit from the innovative
developments of The legendary PAN technologies from our german -
Lower Saxony manufacture.
The secret of directive sound.
Enjoy a consistent, high-quality listening experience in every single seat in the concert hall or theatre. With the Pan Beam series, you will understand all important announcements in train stations, airports, museums or at conferences.
Consulting | Planning support | Commissioning | Workshops
You need the right sound reinforcement solution for your project or are looking for support in choosing the right products? You don't get anywhere with off-the-shelf loudspeakers and are dependent on a special design? Would you like to learn more about our products and audio technologies?
We are here for you!
Products » PAN Beam » PB 16HP (Analog, AES, Dante)
Churches, mosques, museums, live sound reinforcement, train stations, airports, sports facilities, parliaments, conference rooms, lecture halls, shopping centers, audio/video presentation rooms
read moreThe Pan Beam PB 16 is a compact, active, digitally controllable line source loudspeaker with Beam Steering technology in an attractive design, developed for high-quality speech and music transmissions. The PB 16 features Pan Audio DSP and network functionalities such as Pan Net, AES/EBU and Dante. The PB 16 can generate four beams, allowing for targeted sound reinforcement. The beams can be modified using various optimizers (max. SPL, SPL min. sidelobes, min. sidelobes). With the help of digital signal processing, the vertical beam angle and the tilt angle can be precisely aligned to the area to be sounded.
Analog audio inputs
Digital audio inputs AES/EBU
Digital Audio Network DANTE
Pilot tone evaluation
Pan Net
General Purpose Output (GPO)
Priority circuit
Accessories
Ball throwing safety
Looks good, sounds good.
| Configuration: | digitally controllable line source |
| Frequency range: | 70 Hz - 18 kHz |
| drivers: | 16 x 3.5" HQ |
| SPL: | 134 dB SPL* @ 1 m (calc.) | 100 dB SPL @ 25 m |
| Typical range | 35 m |
| Dimensions (H x W x D): | 1812 x 107 x 118 [mm] |
Individual lacquering / colouring in the RAL system. Other colour systems such as RAL design, Pantone etc. are possible on request.
Individual cabinet length of the speaker is possible. The enclosures of the Pan Speaker series can be customised to customer dimensions.
Analog audio inputs with balanced signal routing
Digital audio input: supports 2 x AES/EBU (AES3) and 1 x anlaog audio (failover function)
Digital audio network DANTE incl. AES67 support. Supports redundant network structure with Pan Net control and 1 x analogue audio (failover function).
100V audio inputs with different power taps.
Pilot tone evaluation for integration in SAA/ ENS systems.
Pan Net - Pan Acoustics' proprietary control and monitoring protocol.
General Purpose Output (GPO) Switchable contact e.g. for status request by means of downstream media control.
Priority switching - Automatic switching of the audio inputs, e.g. between program and announcement.
DC input for operation on emergency power supplies.
Weatherproofing of the loudspeakers can be achieved via protection classes IP54 or IP65 (depending on the model).

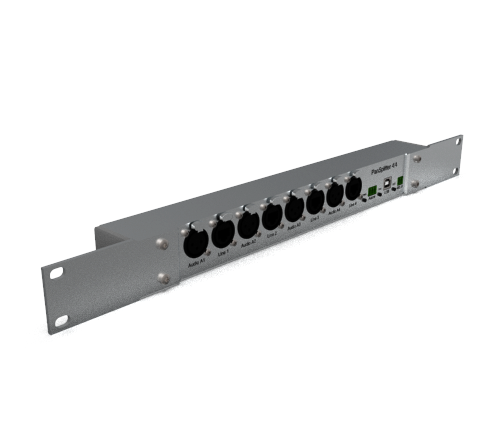

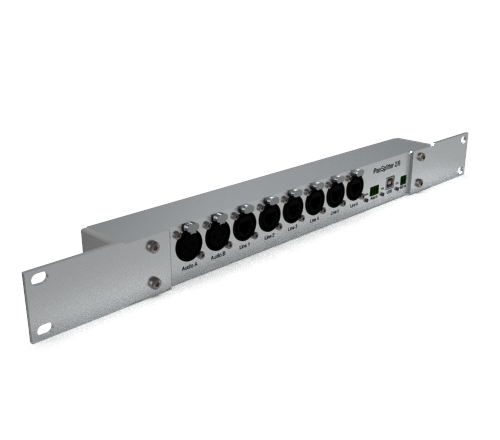

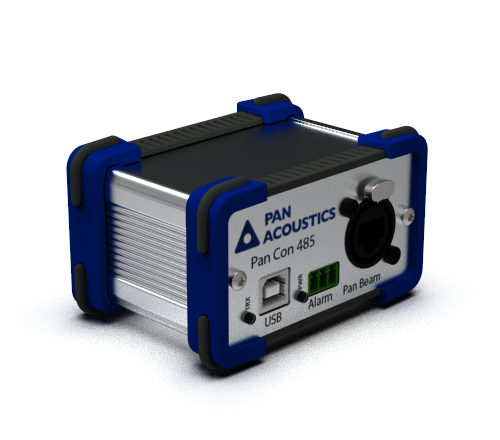

Accessories such as wall, stand and ceiling mounts, various interfaces, connection cables, weather protection hoods and connection sets are available.
Ball throwing safety
Pan Acoustics' products are defined by natural sound and appealing design.
With a new firmware update for the Dante interface of the active loudspeaker models from the Pan Beam and Pan Subwoofer series, the Dante Domain Manager (DDM) is supported.
By supporting the DDM function (such as stream sharing across domain boundaries, assigning access rights, monitoring), the speaker models from the Pan Beam and Pan Subwoofer series can be used even more flexibly in Dante domain environments.
Years of research resulted in our unique Pan Beam Steering technology. For more than 20 years, we have been engaged in basic acoustic research and have incorporated this knowledge into our products. We can precisely adjust the sound propagation of our digitally steerable Pan Beam loudspeakers, comparable to a variable flashlight beam. As a result, we can significantly improve the perceived acoustics in rooms with long reverberation times.
With our Beam Steering solutions, we create remarkable speech intelligibility even in acoustically critical situations, something that cannot be achieved with traditional loudspeakers. We steer the sound directly to the auditorium, using only electronic methods and intelligent software, without the need to mechanically tilt the speaker or changing its position.
