Products » PAN Speaker » P 04-RJ

Pan Speaker

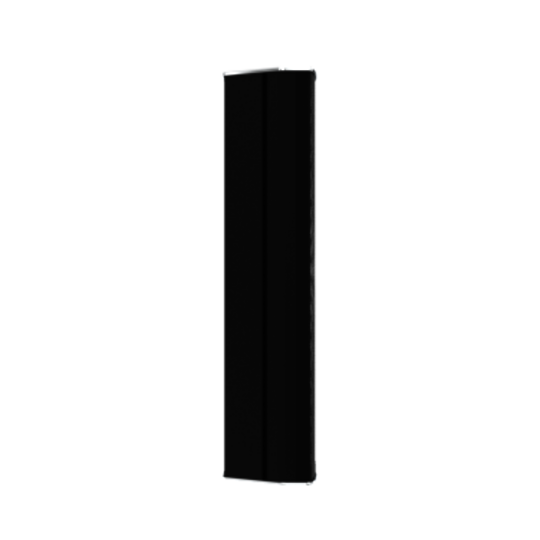

P 04-RJ

Applications

Churches, museums, train stations, airports, parliaments, conference rooms, lecture halls, surround, audio/video presentation rooms, immersive sound

read more

The Pan Speaker P 04-RJ is a passive line source speaker in an attractive design for speech and music applications. The Pan Speaker P 04-RJ is characterised by a precise and natural reproduction. Thanks to the integrated RJ45 socket, this speaker can be used very easily in buildings with structured cabling. It is optionally available with and without U-bracket.

Technical data

Configuration: passive line source
Frequency response: 130 Hz - 18 kHz
Drivers: 4 x 3.5" HQ
Power: 300 W (Peak)/ 200 W (Program)/ 100 W (Nominal)

Dimensions (H x W x D):

Dimensions with bracket (HxWxD):

506 x 107 x 118 [mm]

522 x 107 x 137/152 [mm]

Support

Suitable accessories

Pan Accessories

Stand holder P/PB xx

Stativhalter P/PB xx

Pan Accessories

Wall mount fix

Wandhalterung starr

Pan Accessories

Wall bracket, TWM II

Wandhalterung TWM II

Pan Accessories

Wall bracket, horizontally rotatable (TWM III)
for P/PB xx speaker systems

Wandhalterung, TWM III

Pan Accessories

Wall mount, tiltable, turnable (W/BK)

Pan Accessories

VESA Speaker Mount VSM / VSM XL

PAN Acoustics


Explanation of symbols

Do you have any questions about a product?
We will be happy to advise you:
T +49 5331 900 95 70
kontakt@pan-acoustics.de

Individual lacquering / colouring

Individual lacquering / colouring in the RAL system. Other colour systems such as RAL design, Pantone etc. are possible on request.

Individual housing length

Individual cabinet length of the speaker is possible. The enclosures of the Pan Speaker series can be customised to customer dimensions.

Analog audio inputs

Analog audio inputs with balanced signal routing

Digital audio inputs AES/EBU

Digital audio input: supports 2 x AES/EBU (AES3) and 1 x anlaog audio (failover function)

Digital Audio Network DANTE

Digital audio network DANTE incl. AES67 support. Supports redundant network structure with Pan Net control and 1 x analogue audio (failover function).



100V audio inputs

100V audio inputs with different power taps.

Pilot tone evaluation

Pilot tone evaluation for integration in SAA/ ENS systems.

Pan Net

Pan Net - Pan Acoustics' proprietary control and monitoring protocol.

General Purpose Output (GPO)

General Purpose Output (GPO) Switchable contact e.g. for status request by means of downstream media control.

Priority circuit

Priority switching - Automatic switching of the audio inputs, e.g. between program and announcement.

DC

DC input for operation on emergency power supplies.

Weatherproof

Weatherproofing of the loudspeakers can be achieved via protection classes IP54 or IP65 (depending on the model).

Accessories

Accessories such as wall, stand and ceiling mounts, various interfaces, connection cables, weather protection hoods and connection sets are available.

Ball throwing safety

Ball throwing safety

Looks good, sounds good.

Pan Acoustics' products are defined by natural sound and appealing design.

Convenient, practical and chic:
Loudspeaker with RJ connection solution

Good sound reinforcement in meeting and conference rooms has never been easier

How practical: structured cabling is usually available in meeting rooms, since multimedia meetings are no longer conceivable today without the appropriate IT infrastructure. It is precisely this CAT cabling that Pan Acoustics takes advantage of by connecting the speakers directly via RJ45 to compatible PoE amplifiers as well as to any power amplifiers via an available adapter plug.

The loudspeakers with RJ option can thus be installed without the use of any tools.

RJ connection solution


Now new:
Preset release for DSP power amplifiers

Presets for Pan Speaker, Pan AMT and passive subwoofers

Pan Acoustics is making available its new EQ setting package for DSP power amplifiers for the Pan Speaker, Pan AMT and passive variants of the Pan Subwoofer models.

With the first release, the following DSP power amplifiers are supported:  Lab.Gruppen IPD 1200 and IPD 2400 as well as the Powersoft series Duecanali, Quattrocanali, Ottocanali in the DSP+D version and the Mezzo series. The EQ setting packages are available for download.
